星科工业环保空调：全国包工程安装；支持零售、批发、贴牌、代理、出口海外

适用场所：厂房降温，车间降温，仓库降温，厨房降温等工业商业场所，起到 降温通风效果

产品参数PRODUCT PARAMETERS 星科工业环保空调- 环保空调厂家-

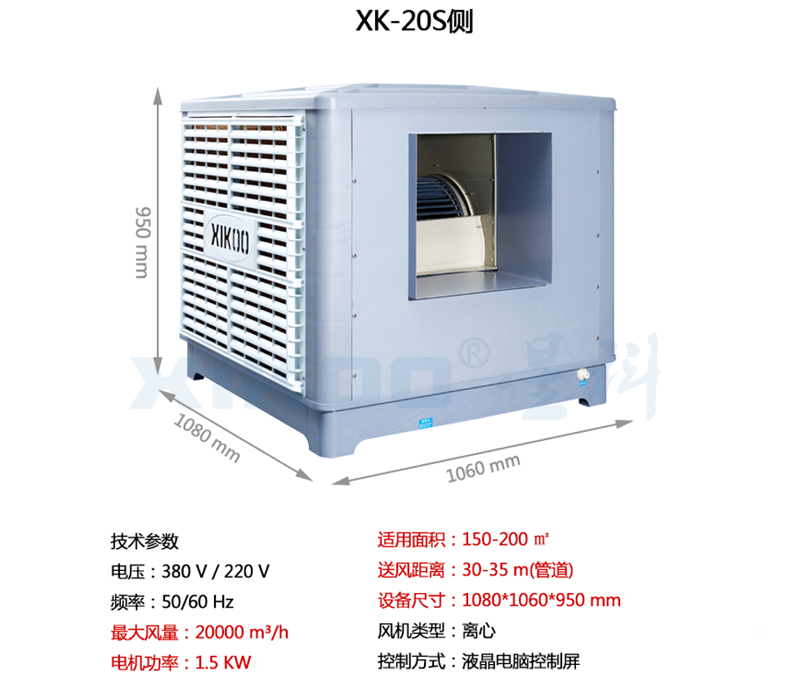

工业环保空调（离心式冷风机）20S参数图

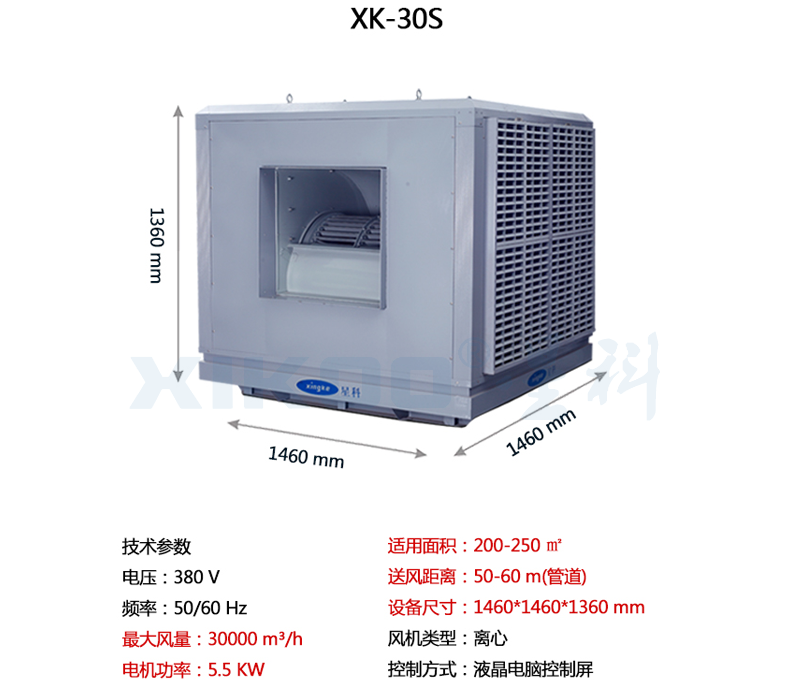

工业环保空调（离心式冷风机）30S参数图

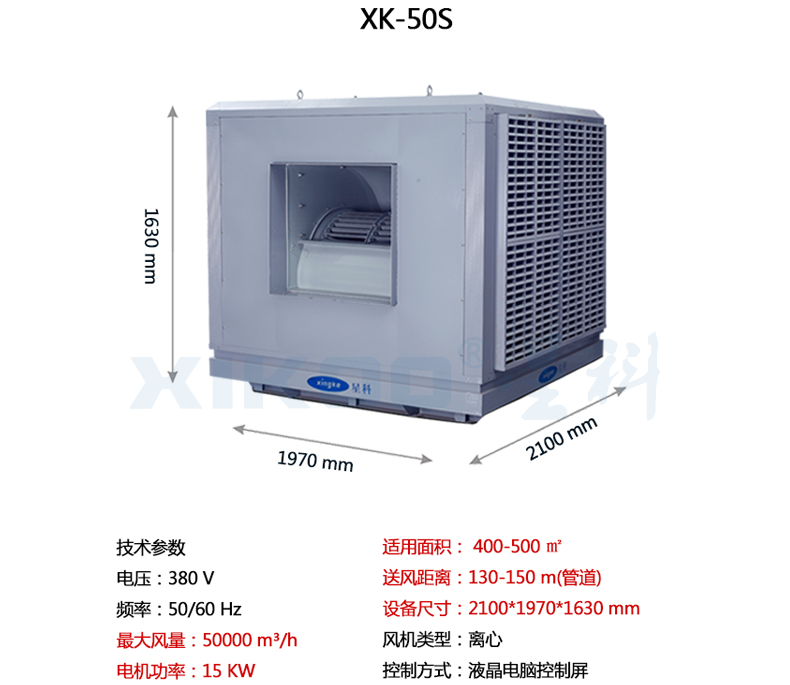

工业环保空调（离心式冷风机）50S参数图

工业环保空调（离心式冷风机）70C参数图

咨询经理13710050791【获取具体报价、降温方案】

功能介绍FEATURES 星科环保空调- 环保空调厂家-

LCD 控制面板 LCD control panel	按钮 Button	功能特点/Function
	自动 AUTO	根据设定的温度Hset和室内湿度H0的差值控制马达输出速度和水泵 开关。 "AUTO"mode:According to the difference between the settingtemperature (Tset) and indoor temperat-ure (TO), then adjust the outlet speed of motor (D); According to the difference between the setting humidity (Hset) and the indoor humidity(HO),then control the ON/OFF of water pump.
	制冷 COOL	制冷设置,通过启动水循环进行制冷. Press COOL, it will be in COOL mode, and COOL display lights, after 30 seconds, fan motor will start working .
	摆风 SWING	调节左右摆风控制 vertical louvers are moving automatically from left to right.
	送风 VENT	正向启动风机 Positive starting up the fan.
	抽风 REVERSE	反向启动风机 Reverse starting up the fan.
	清洗 CLEAN	清洗水箱 Cleaning the water tank

材料介绍MATERIAL INTRODUCTION 星科工业环保空调- 环保空调厂家-

配件/Accessories	材料/Material	配件/Accessories	材料/Material
	外壳Body case: 201#不锈钢材料喷塑，耐腐 蚀，不生锈。高温性能保护 Spraying 201# stainless steel material. Anti-Corrosion,Anti-Rust Better Heat-resistant performance		铸铁电机 Cast iron motor: 铸铁电机外壳，耐腐蚀 防水率IP54级,INS B级,使用寿命长,1年质保,功率5.5KW, 7.5KW, 11KW,15KW,18.5KW...32KW Cast iron motor body,Anti-corrosion. Water-proof Rate IP 54,INS Class B. 5.5KW,7.5KW,
	离心电机 Centrifugal fan: 皮带驱动离心电机，蜗壳式镀锌离心 电机。防腐蚀，防生锈，牢固不锈钢材 料，确保平稳工作。 Belt drive centrifugal motor,volute galvanized centrifugal motor.Anti - corrosion, anti - rust, firm stainless steel material.		电机 Motor: 铸铝电机外壳,耐腐蚀,100%铜芯线线 圈,防水率IP 54级，INS B级,使用寿命长,1年 质保. Cast aluminum motor shell,Anticorrosion. 100% copper-wire motor winding.Water-proof Rate IP 54,INS Class B. Long life. 1 year warranty.
	水帘 Cooling Pads: 厚度为100mm7090#水帘，蒸发率 达80%以上，完美包边保护功能。 100mm thickness 7090# cooling pads. More than 80% evaporative rate. Protection with perfect covered edge		风叶 Fan blades: 尼龙和玻璃纤维材料,经过动态平衡测试. Nylon and Glass fibre material. Passing dynamic balance test before using.
